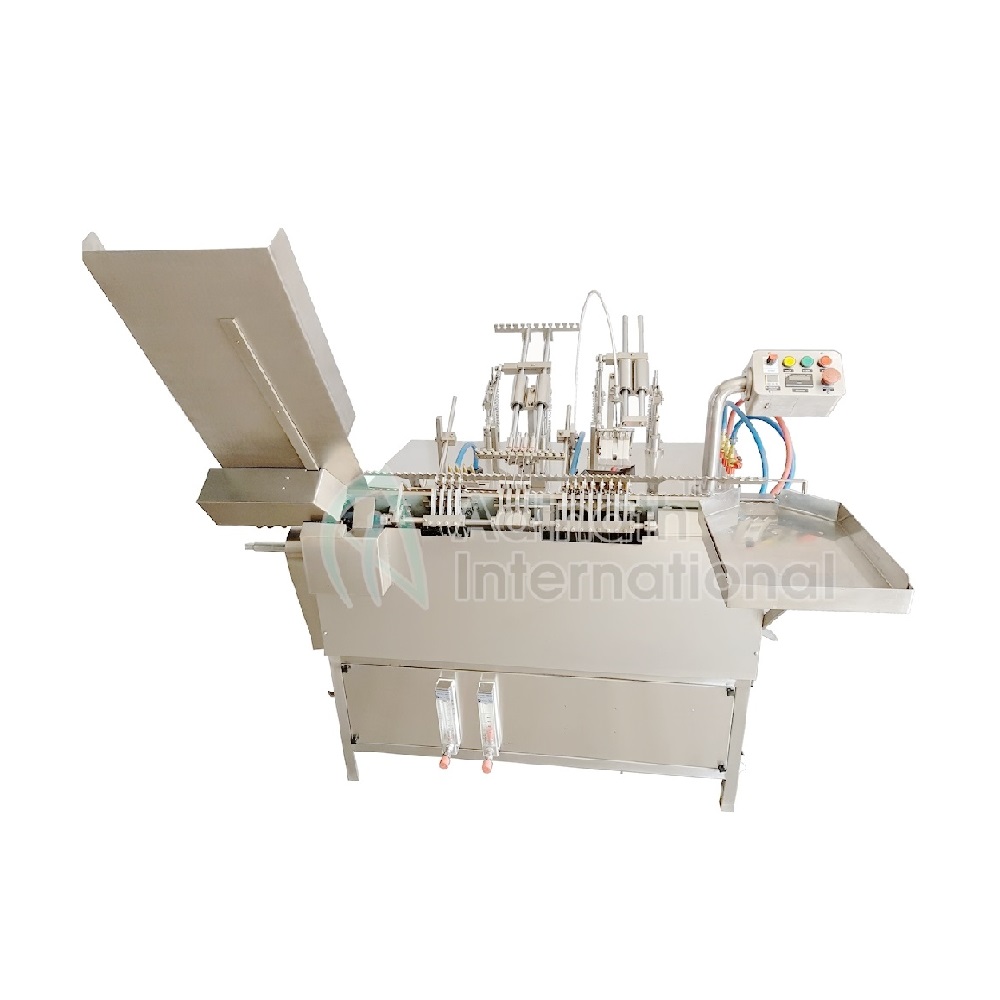

High Speed Ampoule Filling & Sealing Machine Model AI-AFSM 8 built on principle of slant travel of ampoules while filling and sealing, to take care of vide variation of ampoule neck dimensions, thicknesses of available standard ampoules.
The Filling unit built on S. S. Square pipe frame and totally encompassed with S. S. Coverings, in pleasing matt finish, Further, the large opening available at the bottom side for ease of absolute cleaning.
The pendant type electrical control panel is lifted from machine for ease of operation and safety.

Salient Features of Ampoule Filler Sealer Machine
  • Compact GMP model
  • All contact parts made from AISI SS 316L & other Non-contact parts made from AISI SS 304.
  • Minimum change over parts from 1ml to 10ml ampoule size
  • “No Ampoule – No Filling” system
  • Ampoule neck centering during gas flushing and filling operations
  • Possibility of nitrogen gas flushing before, during and after filling
  • Full accessibility allows easy maintenance
  • Machine equipped with pre-warming station
  • Minimum change over time, little maintenance & easy cleaning

Process Operation of Ampoule Filling Sealing Machine
The sterilized ampoule tray directly loaded in to slant hopper of the unit. The Synchronized star wheel delivers ampoules one by one on moving eccentric ampoule rack in four’s.
During the stoppage of rack sequentially pre-gassing, filling, post gassing, pre-heating and final sealing is achieved. Duly filled sealed ampoules then collected on collection tray automatically without hand touch.

Technical Specification of High Speed Ampoule Filler Sealer Machine
Model No. AFS 8
Ampoule Filling Range 1 ml to 10 ml
Production Output 200 ampoules/ min.
Filling Accuracy ±1
Require Gas for Sealing LPG & Oxygen (O₂)
Nitrogen Flushing Pre-& Post Nitrogen Flushing Available
Power Specification 1 H.P.
Electrical Characteristics 230 Volts, Single Phase, 50 Hertz, 4 Wire System
Contact Parts Stainless Steel 316L
Non-Contact Parts Stainless Steel 304
Overall Dimension 1180mm (L) x 1075mm (W) x 975mm (H)
* Specification offered is for reference purpose only.
